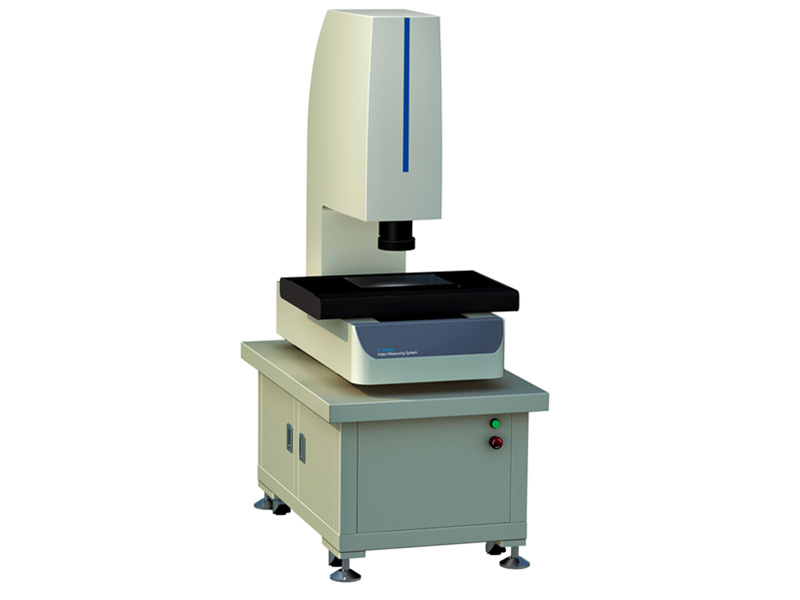

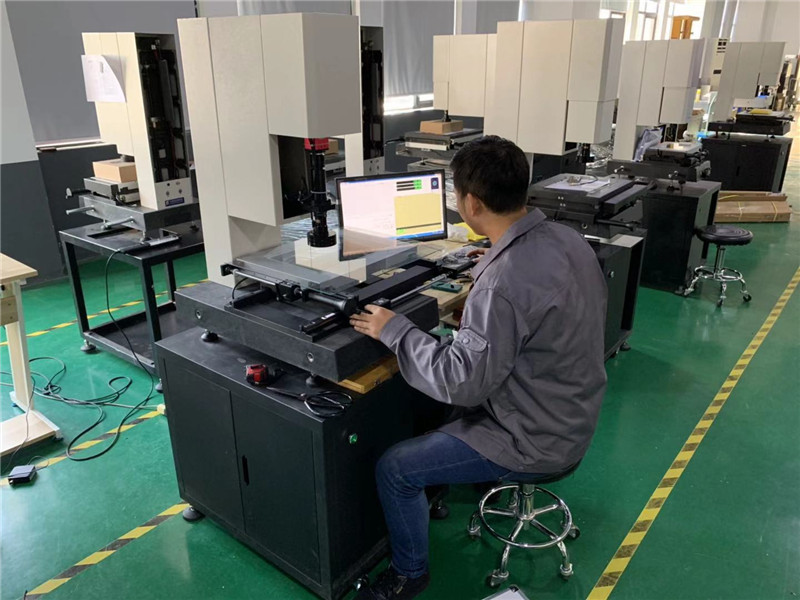

全自动影像测量仪TMA30E,行程300X200

所属分类：尺寸测量仪器 > 影像测量仪

产品概述：A. 基本参数 Basic Parameter设备名称Equipment Name全自动影像测量仪CNC Video Measuring Machine型号Model行程（mm）Range外形尺寸（mm）External Size整机重量（kg）Weight机台承重（kg）Load-bearingA30E3002002001120800165027030测量精度AccuracyE2XY=（2.8+L*/20…

A. 基本参数  Basic Parameter

B. 仪器特点 Features

n 三轴CNC控制，自动寻边、自动测量、自动对焦

Three-axis CNC control, auto-focus, auto-measurement, auto-finding edge.

n 精密花岗岩架构，满足高精度，高稳定性

Precision granite machines, high accuracy and stability.

n 全闭环伺服运动控制系统，速度快、精度高

Closed-loop servo-control system, high speed and precision.

n 全鼠标操作，易学易用

Easily operated with mouse.

n 手动变倍镜头，倍率轻松切换，变倍后无需重新校正

Manual optical lens, easy switch, no recalibration after zoom.

n 表面光源为程控5环8区LED冷光源，平行轮廓光源

Programmable LED lighting (5 rings 8 octants), parallel profile light.

n 根据客户工件的具体情况，提供不同的照明组合

Provide different lighting combination according to the parts particular case.

n 可聚焦测高，可加装接触式测头和激光测头模组

Automatic focus for height measurement. Touch probe and laser probe module can be optioned.

n 可以按照客户需求提供定制化设计

Provide customized design.

C.  软件系统  Software System

基本测量功能 Basic Measuring Function

n 可测几何特征：点、线、圆、弧、样条曲线、椭圆、矩形、四边形、槽、R角、环、距离等。

It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, etc.

n 构建：中心点、端点、交点、两点连线、平行线、垂线、切线、平分线、中心线、内切圆等。

It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.

n 影像量测工具：绘图点、最近边缘点、聚焦点、圆形框取点、整体提取、多段提取、快速整理取圆。

Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace.

n 形位公差：直线度、圆度、位置度、平行度、垂直度、倾斜度、同心度等。

It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.

n 坐标系：夹具定位坐标系、点线、两点X、两点Y、两线；平移、旋转、手工调整坐标系。

Coordinate system: Fixture positioning coordinate system, dotted line,  Two points determine the X axis, Two points determine the Y axis, two lines.  Translation,  rotation,  manually adjust the coordinate system.
