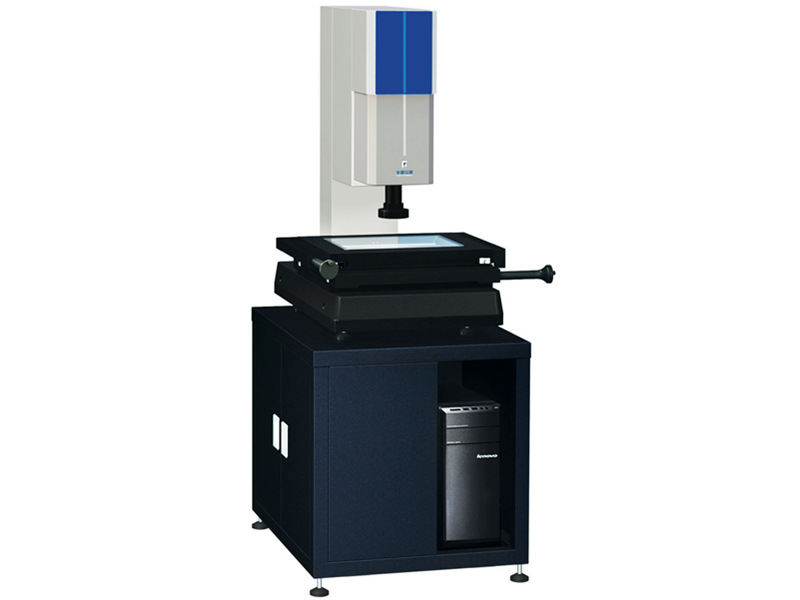

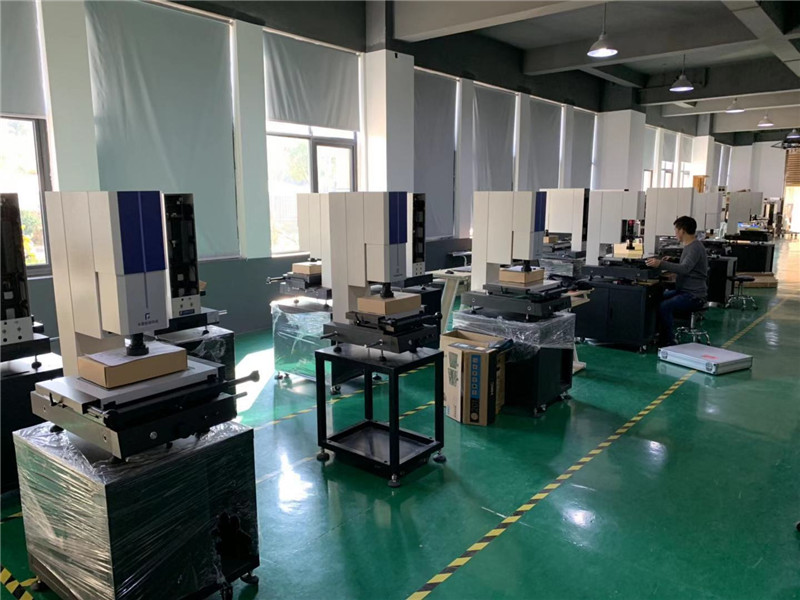

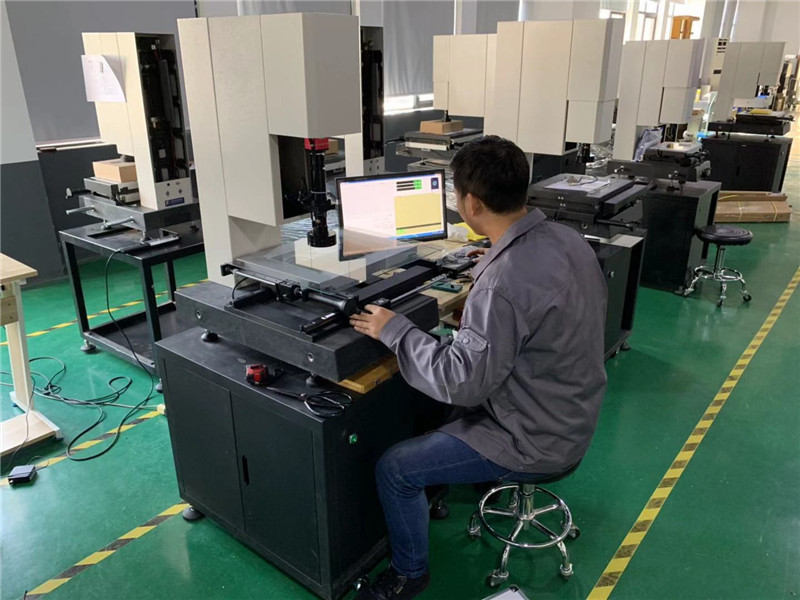

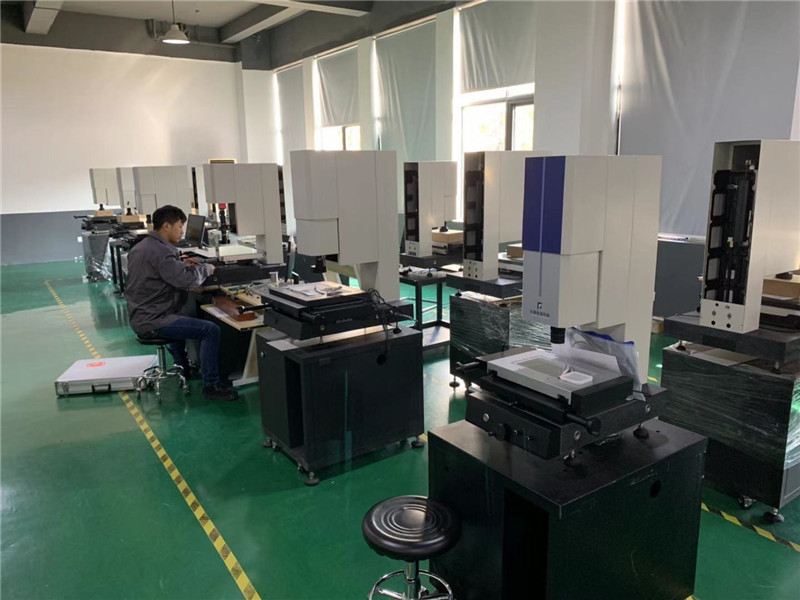

半自动影像测量仪TM30S,行程300X200

所属分类：影像测量仪

产品概述：A. 基本参数 Basic Parameter设备名称Equipment Name半自动影像测量仪Semi-automatic Video Measuring Machine型号Model行程（mm）Range外形尺寸（mm）External Size整机重量（kg）Weight机台承重（kg）Load-bearingM30S3002002001100750160024025测量精度AccuracyE2XY=…

A. 基本参数  Basic Parameter

B. 仪器特点 Features

n 高精度花岗岩架构和工作平台，稳定可靠

Precision granite machines, high accuracy and stability.

n 自动聚焦，避免人为误差，提高测量精度

Auto-focus to avoid personal error, improve precision.

n 八分区表面光源，充分满足不同工件的复杂照明要求

8 octants surface lighting to meet complex lighting of parts.

n 精密传动机构设计，可实现准确定位和快速移动

Precise driving gear design to achieve pinpoint and fast movement.

n 精密交叉滚柱导轨，运动平稳顺滑

Precise intersect roller guide, smooth movement.

n 可聚焦测高，可加装接触式测头

Automatic focus for height measurement. Touch probe can be optioned.

n 测量数据可导出至Word、Excel、AutoCAD

Support forms style of Word, Excel, AutoCAD.

n 可以按照客户需求提供定制化设计

Provide customized design.

C.  软件系统  Software System

基本测量功能 Basic Measuring Function

n 可测几何特征：点、线、圆、弧、样条曲线、椭圆、矩形、四边形、槽、R角、环、距离等。

It can test the geometric element, including point, line, circle, arc, spline, ellipse, rectangle, slot, ring circle ,gap, distance, etc.

n 构建：中心点、端点、交点、两点连线、平行线、垂线、切线、平分线、中心线、内切圆等。

It can construct centered, endpoint, insect, connect, parallel, perpendicular, tangent, bisect, combine, etc.

n 影像量测工具：绘图点、最近边缘点、聚焦点、圆形框取点、整体提取、多段提取、快速整理取圆。

Video measuring tools include drawing point, closed point, focus point, pick point by circle, whole pick, multiple pick, edge trace.

n 形位公差：直线度、圆度、位置度、平行度、垂直度、倾斜度、同心度等。

It can provide tolerance measurement: include straightness, roundness, position, parallelism, perpendicularity, angularity and concentricity, etc.

n 坐标系：夹具定位坐标系、点线、两点X、两点Y、两线；平移、旋转、手工调整坐标系。

Coordinate system: Fixture positioning coordinate system, dotted line,  Two points determine the X axis, Two points determine the Y axis, two lines.  Translation,  rotation,  manually adjust the coordinate system.
